Overcoming Same-Origin Policy Challenges: A Guide to Secure microservices having Cross-Domain Authentication. Moving from URLs to Secure Headers - Part 2

How can I securely transmit JWT between microservices across different domains without exposing the token in the URL? What secure mechanisms can I use to enable cross-domain authentication?

The Problem

1. Problem #1: The previous method sends the JWT as a URL parameter, which is not secure. This can cause security issues like leaking the token.

2. Problem #2: My microservices are on two different domains, so I can't create cross-domain cookies directly due to browser security rules.

3. Problem #3: The Same-Origin Policy (SOP) limits interactions between different domains to prevent security threats like Cross-Site Request Forgery (CSRF) and Cross-Site Scripting (XSS).

4. Problem #4: Browser security features restrict direct interaction between different domains to safeguard user data.

The Solution

1. Solution #1: Use HTTP-only cookies or Authorization headers to transmit the JWT securely.

2. Solution #2: Implement a secure mechanism for cross-domain authentication that complies with the Same-Origin Policy (SOP), such as using a backend proxy or OAuth flows.

3. Solution #3: Utilize secure communication methods and proper authentication protocols to ensure compliance with SOP while maintaining functionality.

4. Solution #4: Implement secure cross-domain communication techniques, such as CORS (Cross-Origin Resource Sharing) with proper configurations, to enable necessary interactions while maintaining security.

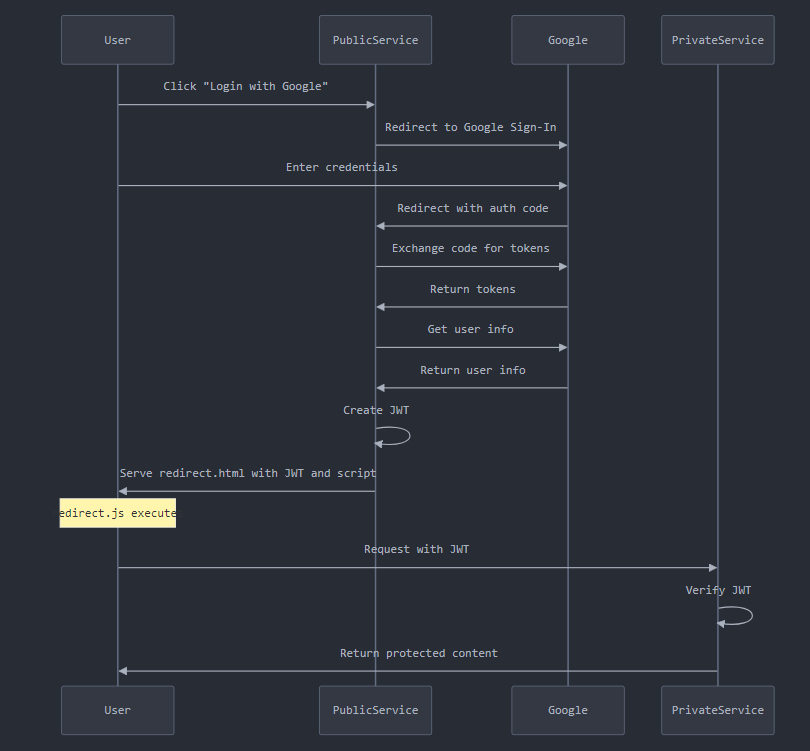

Implementation

1. User Initiates Login: The process begins when a user visits the public service and clicks on the "Login with Google" link.

<a href="/login">Login with Google</a>

2. User Clicks the Login Link - URL: https://public-service-183061022621.us-central1.run.app/login

Redirect to Google OAuth:

https://accounts.google.com/o/oauth2/v2/auth?client_id=183061022621-oiivmgvihfrnr14068aunhurm

Redirect to Google Sign-In: The /login route in the public service redirects the user to Google's authentication page. This code constructs the Google authentication URL with necessary parameters like client_id, redirect_uri, and requested scopes.

@app.route('/login')
def login():
    google_auth_url = "https://accounts.google.com/o/oauth2/v2/auth"
    params = {
        "client_id": CLIENT_ID,
        "redirect_uri": REDIRECT_URI,
        "response_type": "code",
        "scope": "openid email profile",
    }
    return redirect(f"{google_auth_url}?{urlencode(params)}")

3. User Authenticates with Google: The user enters their Google credentials on Google's login page.

4. Google Redirects Back with Authorization Code: After successful authentication, Google redirects the user back to the specified REDIRECT_URI with an authorization code.

https://public-service-183061022621.us-central1.run.app/callback?code=4%2F0AVG7fiQjyA3LSj8xvmlXOYaEVnZe2K3SoGQgaKCmCyQbfcBGhO-Dd7Q8aljNayxttQQo1w&scope=email+profile+https%3A%2F%2Fwww.googleapis.com%2Fauth%2Fuserinfo.profile+openid+https%3A%2F%2Fwww.googleapis.com%2Fauth%2Fuserinfo.email&authuser=0&hd=us.mcd.com&prompt=none

5. Exchange Authorization Code for Tokens: The public service receives the authorization code and exchanges it for access and ID tokens from Google.

URL: https://public-service-183061022621.us-central1.run.app/callback?code=4%2F0AVG7fiQjyA3LSj8xvmlXOYaEVnZe2K3SoGQgaKCmCyQbfcBGhO-Dd7Q8aljNayxttQQo1w

Public service exchanges the code for tokens:

POST https://oauth2.googleapis.com/token
Content-Type: application/x-www-form-urlencoded

client_id=183061022621-oiivmgvihfrnr14068aunhurmvkm5pcq.apps.googleusercontent.com&client_secret=GOCSPX-ncP

This code sends a POST request to Google's token endpoint to exchange the authorization code for tokens.

@app.route('/callback')
def callback():
    code = request.args.get('code')
    token_url = "https://oauth2.googleapis.com/token"
    params = {
        "client_id": CLIENT_ID,
        "client_secret": CLIENT_SECRET,
        "code": code,
        "redirect_uri": REDIRECT_URI,
        "grant_type": "authorization_code",
    }
    response = requests.post(token_url, data=params)
    token_info = response.json()
    id_token = token_info.get("id_token")

6. Retrieve User Information: The public service uses the ID token to fetch the user's email from Google

user_info = requests.get(f"https://oauth2.googleapis.com/tokeninfo?id_token={id_token}").json()

email = user_info.get('email')

7. Create JWT: The public service creates a JSON Web Token (JWT) containing the user's email.

jwt_token = jwt.encode({'email': email}, JWT_SECRET_KEY, algorithm='HS256')

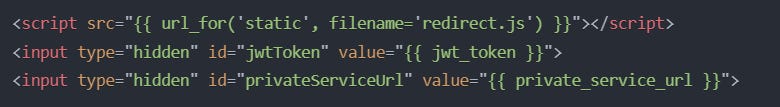

8. Public service returns redirect.html. Redirect to Private Service: The public service sends the JWT to the client-side JavaScript, which then makes a request to the private service.

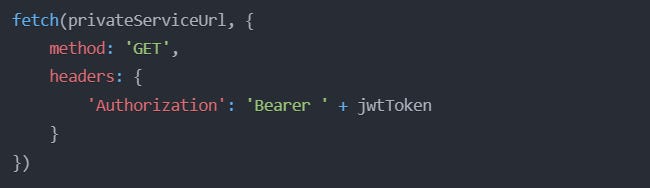

9. Client-Side Request to Private Service: The JavaScript code sends a request to the private service with the JWT in the Authorization header.



10. Private Service Verifies JWT: The private service receives the request, extracts the JWT from the Authorization header, and verifies it.

@app.route('/')
def private():
    auth_header = request.headers.get('Authorization')
    token = auth_header.split(' ')[1]
    try:
        payload = jwt.decode(token, JWT_SECRET_KEY, algorithms=['HS256'])
        email = payload.get('email')
        return render_template('index.html', email=email)
    except jwt.InvalidTokenError:
        return render_template('index.html', email="Invalid token"), 401

9. Private Service Responds: If the JWT is valid, the private service responds with the protected content.

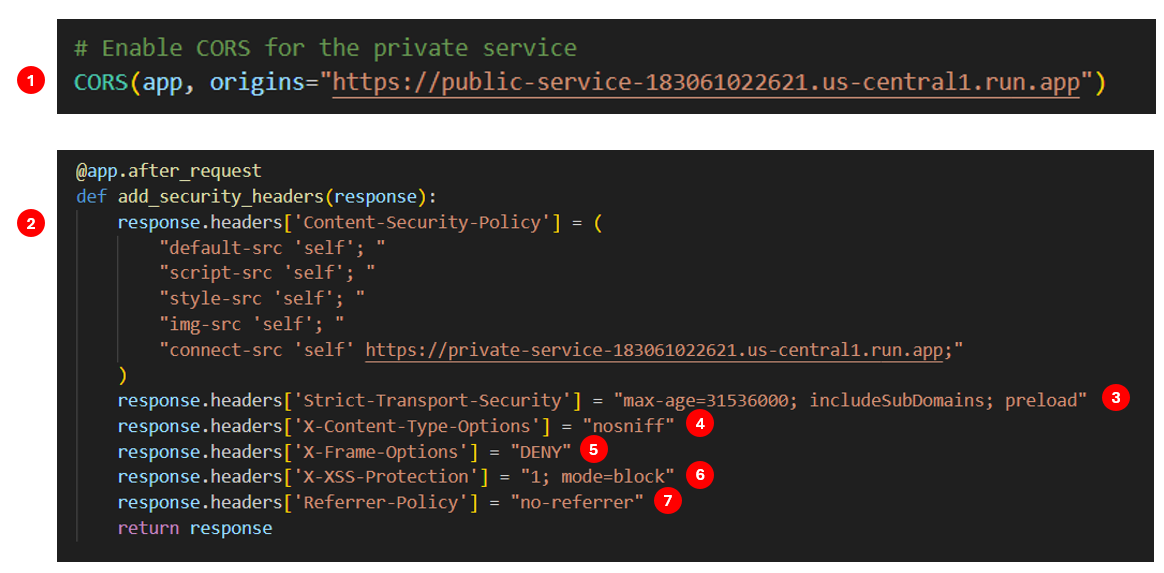

The Concepts

1️⃣Access-Control-Allow-Origin

• Purpose: This header is used to specify which origins are allowed to access the resource. It is part of the CORS (Cross-Origin Resource Sharing) mechanism.

• Usage: This header is set by the server to indicate that the resource can be accessed by the specified origin.

2️⃣Content-Security-Policy (CSP)

• Purpose: This header is used to prevent various types of attacks, such as Cross-Site Scripting (XSS) and data injection attacks, by specifying which sources of content are trusted.

• Usage: This header specifies the sources from which content can be loaded. In this example, only content from the same origin ('self') and the specified private service domain is allowed.

3️⃣Strict-Transport-Security (HSTS)

• Purpose: This header is used to enforce secure (HTTPS) connections to the server.

• Usage: This header tells the browser to only connect to the server over HTTPS for the specified duration (max-age). The includeSubDomains directive applies the policy to all subdomains, and the preload directive indicates that the site should be included in the browser's HSTS preload list.

4️⃣X-Content-Type-Options

• Purpose: This header is used to prevent the browser from interpreting files as a different MIME type than declared by the server.

• Usage: This header prevents the browser from MIME-sniffing, which can be used to execute scripts in unexpected contexts.

5️⃣X-Frame-Options

• Purpose: This header is used to control whether a browser should be allowed to render a page in a frame, iframe, or object.

• Usage: This header prevents clickjacking attacks by disallowing the page to be rendered in a frame.

6️⃣X-XSS-Protection

• Purpose: This header is used to enable the Cross-Site Scripting (XSS) filter in most recent web browsers.

• Usage: This header enables the XSS filter and specifies that the browser should block the response if an XSS attack is detected.

7️⃣Referrer-Policy

• Purpose: This header is used to control how much referrer information (sent with the Referer header) should be included with requests.

• Usage: This header specifies that no referrer information should be sent with requests.
