Stress-Testing an OIDC Flow Before Production — My Tech Lead’s Framework

... or How to Hack an App having a Malformed OIDC flow?

As a tech lead, a big part of my job is to review an application and formally commit—on behalf of my team—that it is secure enough to ship. In my company, most applications rely on OAuth 2.0 and OpenID Connect (OIDC). When I sign off on an application, I am effectively taking responsibility for the security of its authentication and authorization flow.

This post documents the framework I use to pentest and stress-test an OAuth/OIDC flow before production.
The objective is not to re-implement the spec—it is to prove that the implementation is resilient under realistic attack conditions.

The approach is practical:

• Intercept everything with mitmproxy

• Analyze and correlate flows with Python

• Run it all in Docker for repeatability

• Produce evidence, not opinions

---

Problem Framing: Where OAuth Security Fails in Practice

Most security failures do not originate from the specification—they originate from misuse, misconfiguration, or incomplete threat modeling.

Typical failure points:

• Tokens exposed outside their intended boundaries

• Authorization codes reused or intercepted

• Weak redirect URI validation

• Missing PKCE or state validation

• Tokens stored or logged insecurely

• Frontend compromise (XSS)

• Over-trusting TLS as a security boundary - TLS protects transport, not behavior.

Common Attacks to Simulate

• Authorization code reuse

• PKCE removal

• Redirect URI manipulation

• Token leakage via referers

• CSRF via missing or reusable state

• Refresh token replay

---

What I Am Actively Exploring?

The core question this framework answers is:

If I fully intercept and reconstruct the OAuth/OIDC flow, is there any data exposed, misplaced, reusable, or insufficiently protected?

To answer that, I:

• Capture the entire authorization lifecycle

• Reconstruct flows step-by-step

• Analyze tokens, headers, cookies, parameters, and redirects

• Simulate realistic attacks

---

Threat Model -Baseline

Before testing, let’s define the attacker:

• Network attacker (same Wi-Fi, corporate proxy)

• Malicious browser extension

• Compromised frontend (XSS)

• Stolen refresh token

• Misconfigured OAuth client

Assumptions:

• TLS is enabled

• Identity Provider (IdP) is trusted but not infallible

Authorization Request

The client initiates authorization at the IdP.

• Is PKCE (code_challenge) used for public clients?

• Is state present and validated?

• Are response_type and scope appropriate?

• Is redirect_uri strictly validated?

Ideal Situation

• PKCE enforced (S256)

• Unique state, validated server-side

• response_type=code

• Minimal scopes

• Redirect URIs are exact-match only

User Authentication

The IdP authenticates the user.

• Are strong authentication policies enforced?

• Is IdP session separation clear?

Ideal Situation

• MFA where required

• Short-lived IdP sessions

Authorization Response

The IdP redirects the user back with an authorization code or error.

• Is state validated before processing?

• Are authorization codes single-use and short-lived?

• Are errors handled safely?

Ideal Situation

• Single-use, short-lived authorization codes

• Mandatory state validation

• No sensitive data in redirects or logs

Token Exchange

The client exchanges the authorization code for tokens.

• Is the exchange done over HTTPS?

• Are tokens ever exposed in URLs?

• Is code_verifier required for PKCE?

Ideal Situation

• HTTPS enforced

• Tokens only returned in secure response bodies

• PKCE verification mandatory

• Client secrets never exposed to frontend

Token Storage

Where issued tokens are stored after exchange.

• Where are access tokens stored?

• Where are refresh tokens stored?

• Are cookies properly configured?

Ideal Situation

• Access tokens: short-lived, memory or HttpOnly cookies

• Refresh tokens: server-side or HttpOnly cookies

• No tokens in localStorage

• Cookies: HttpOnly, Secure, intentional SameSite

Token Usage

Access tokens are used to call protected APIs.

• Are tokens sent via Authorization headers?

• Is validation done server-side?

• Are scopes enforced per endpoint?

Ideal Situation

• Authorization: Bearer <token> only

• Server-side validation (signature, issuer, audience, exp)

• Scope checks on every protected endpoint

Refresh Flow

Refreshing access tokens without user interaction.

• Are refresh tokens rotated?

• Is reuse detected?

Ideal Situation

• Refresh token rotation enabled

• Reuse detection and revocation

• Limited refresh token lifetime

Logout / Revocation

Termination of trust and session cleanup.

• Are tokens revoked?

• Are sessions fully invalidated?

Ideal Situation

• Server-side session invalidation

• Token revocation at IdP

• Logout propagated when supported

---

What to Capture?

For every request and response:

• URL

• Method

• Headers

• Cookies (Set-Cookie and Cookie)

• Query parameters

• POST bodies

• Redirect chains

Special attention to:

• /authorize

• /token

• /callback

• /userinfo

• /.well-known/openid-configuration

If it crosses the wire, it is captured.

---

My framework and evidence I Require for Sign-Off

When Chrome makes requests, they go through mitmproxy first. Our Python script acts as a mitmproxy “addon” that intercepts these requests/responses and logs them.

Chrome → mitmproxy (proxy:8080) → Internet
            ↓
    Python addon (your script)
            ↓
    traffic_log.txt

1 - Interception Layer (mitmproxy)

Acts as an HTTP/HTTPS proxy server that sits between Chrome and the internet. Chrome is configured to route all traffic through mitmproxy

• Capture all HTTP/HTTPS traffic

• Log OAuth endpoints and API calls

• Extract OAuth parameters from URLs and bodies

2 - Analysis Engine (Python)

Starts mitmproxy programmatically, captures traffic events, and logs them

• Parse captured traffic

• Reconstruct OAuth flows

• Validate PKCE, state, token handling

• Flag security findings

3 - Containerized Test Environment (Docker)

• Isolated and reproducible

• CI/CD friendly

• Easy to share and rerun

To approve a release, I require:

• Full intercepted flow logs

• Decoded token samples

• Cookie tables

• Scope-to-endpoint mapping

• Screenshots of redirects

• mitmproxy scripts

How to Set up my pentesting pipeline?

A - Install mitmproxy in our MacOS

brew install --cask mitmproxy
mitmdump --version

B - Create our Analysis Engine with python

mkdir Desktop/HandsOn/MITM-PROXY
python3 -m venv venv-mitmp
source venv-mitmp/bin/activate
pip install mitmproxy

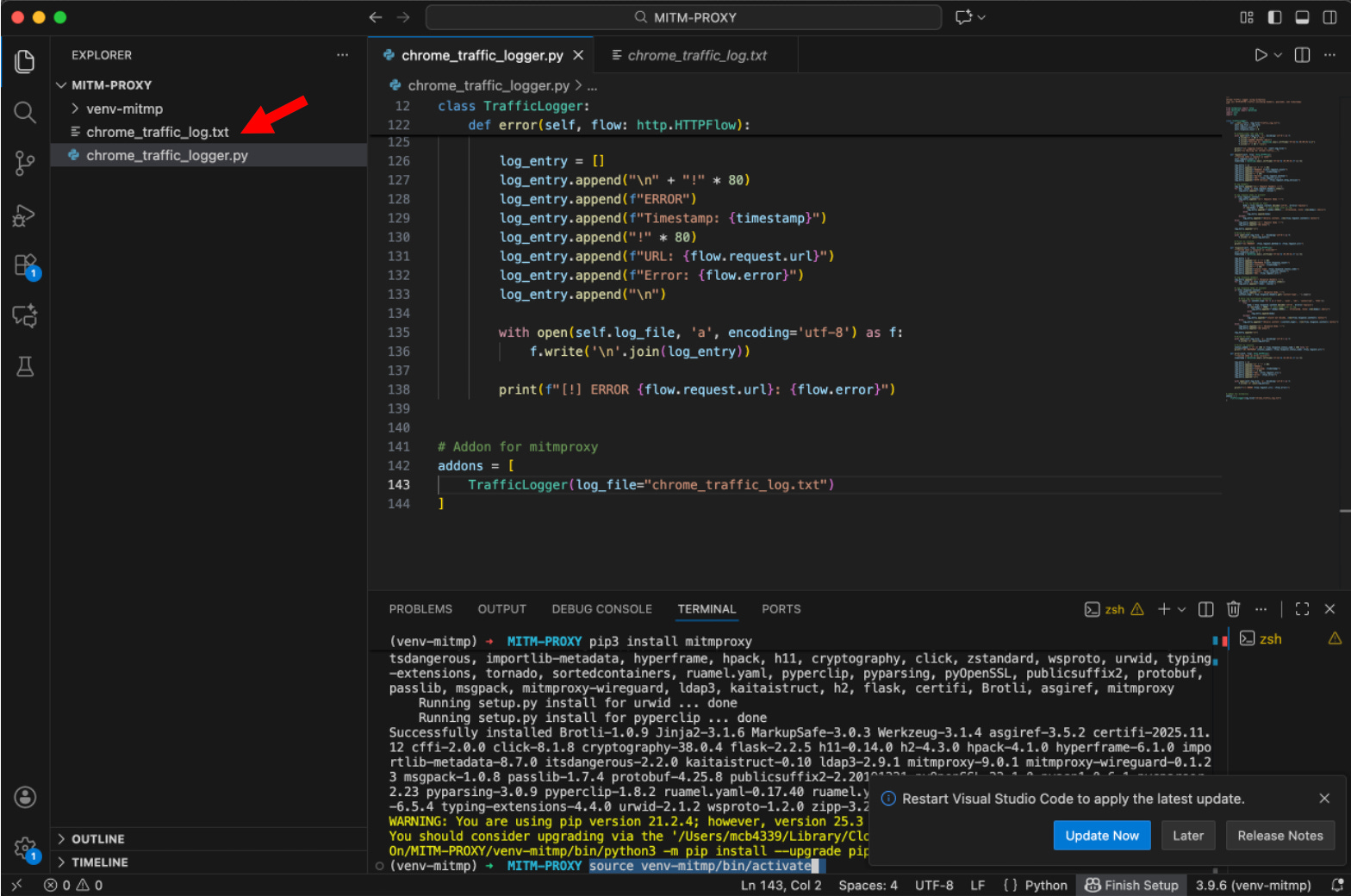

Now let’s create our Python script. The file chrome_traffic_log.txt will be the output destination where all captured traffic is logged.

C - Launch mitmproxy

In one Terminal - let’s launch:

cd Desktop/HandsOn/MITM-PROXY
mitmdump --ssl-insecure -s chrome_traffic_logger.py

In another Terminal - let’s launch:

/Applications/Google\ Chrome.app/Contents/MacOS/Google\ Chrome \ --proxy-server="http://localhost:8080" \ --user-data-dir="/tmp/chrome-proxy-profile"

First - be sure that we:

• Start mitmproxy once in a terminal and then…

• …Visit http://mitm.it in Chrome and then…

• …Download and install the certificate for our OS

Without this certificate, Chrome will show SSL errors for all HTTPS sites.

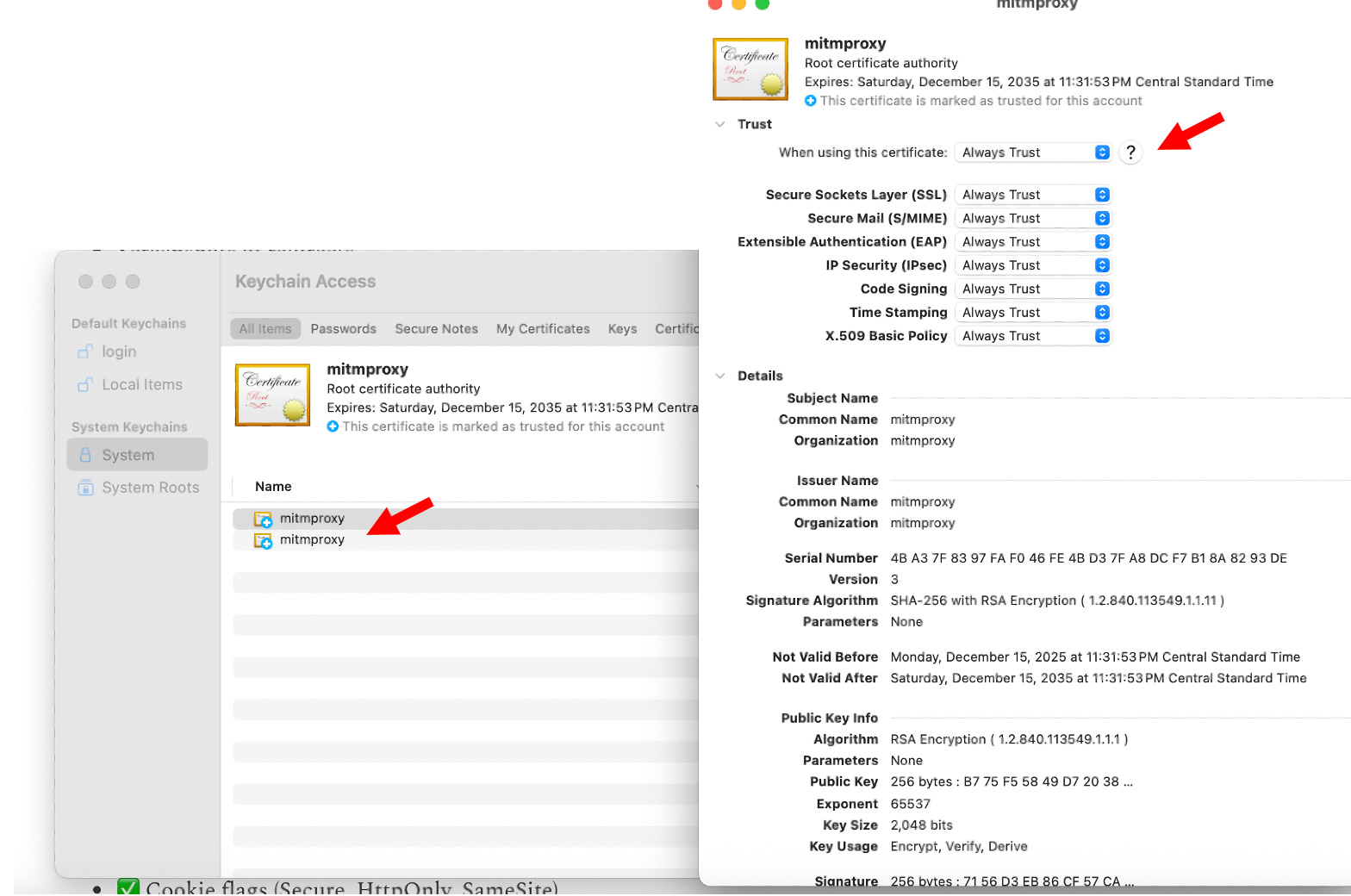

Install certificate into macOS Keychain

1. Open Keychain Access

2. Import:

~/.mitmproxy/mitmproxy-ca-cert.pem

1. Find the certificate

2. Open it → Trust

3. Set:

When using this certificate → Always Trust

Conclusion

• ✅ PKCE presence and strength (S256 vs plain)

• ✅ State parameter for CSRF protection

• ✅ Nonce for replay protection

• ✅ Redirect URI security (HTTPS enforcement)

• ✅ Token transmission methods (never in URLs)

• ✅ JWT algorithm validation (no “none” algorithm)

• ✅ Token expiration validation

• ✅ Cookie flags (Secure, HttpOnly, SameSite)
